Name: Teac PE-505 Phono Preamplifier (Black)
Brand: Teac
SKU: 222111
Price: 225500.00 INR
Availability: InStock

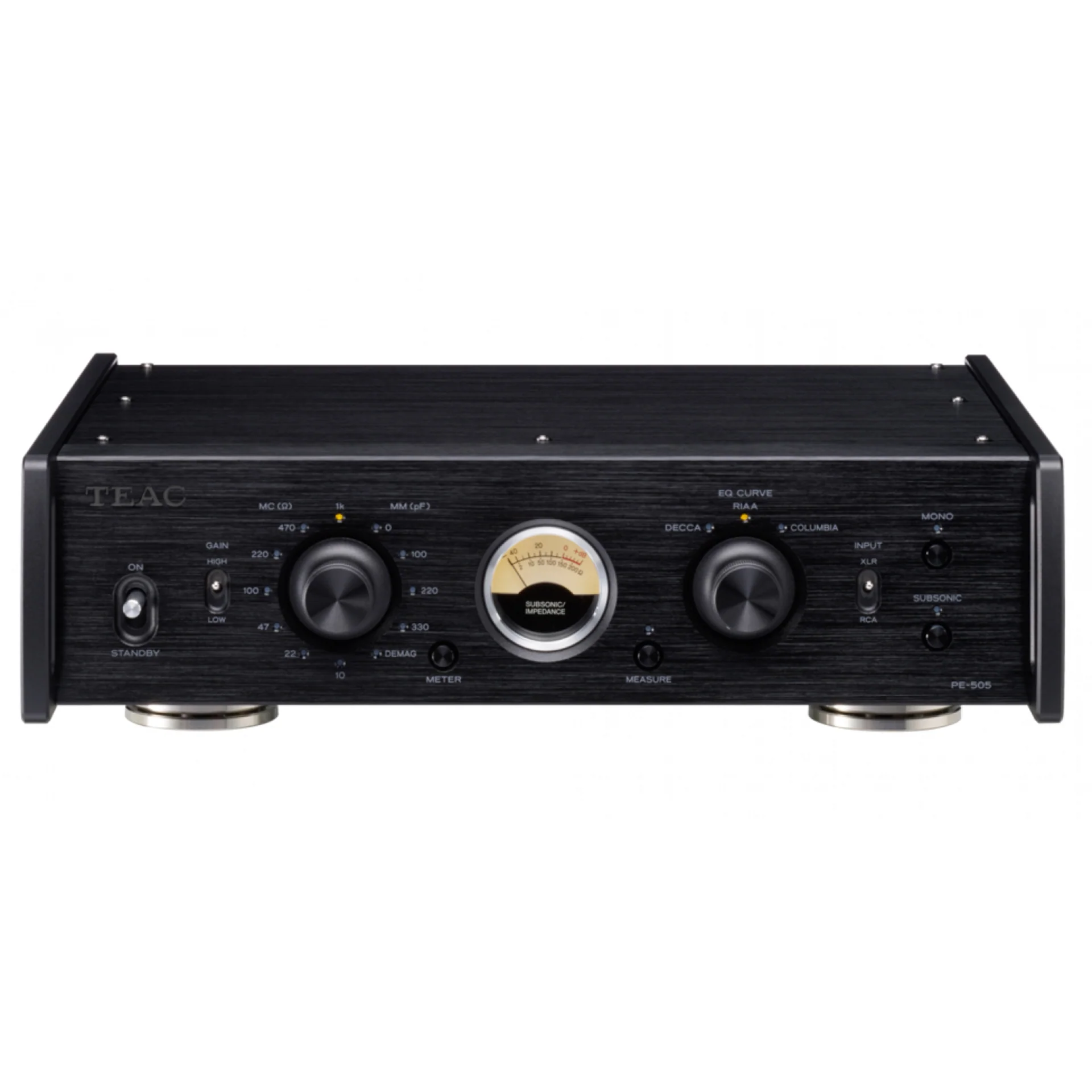

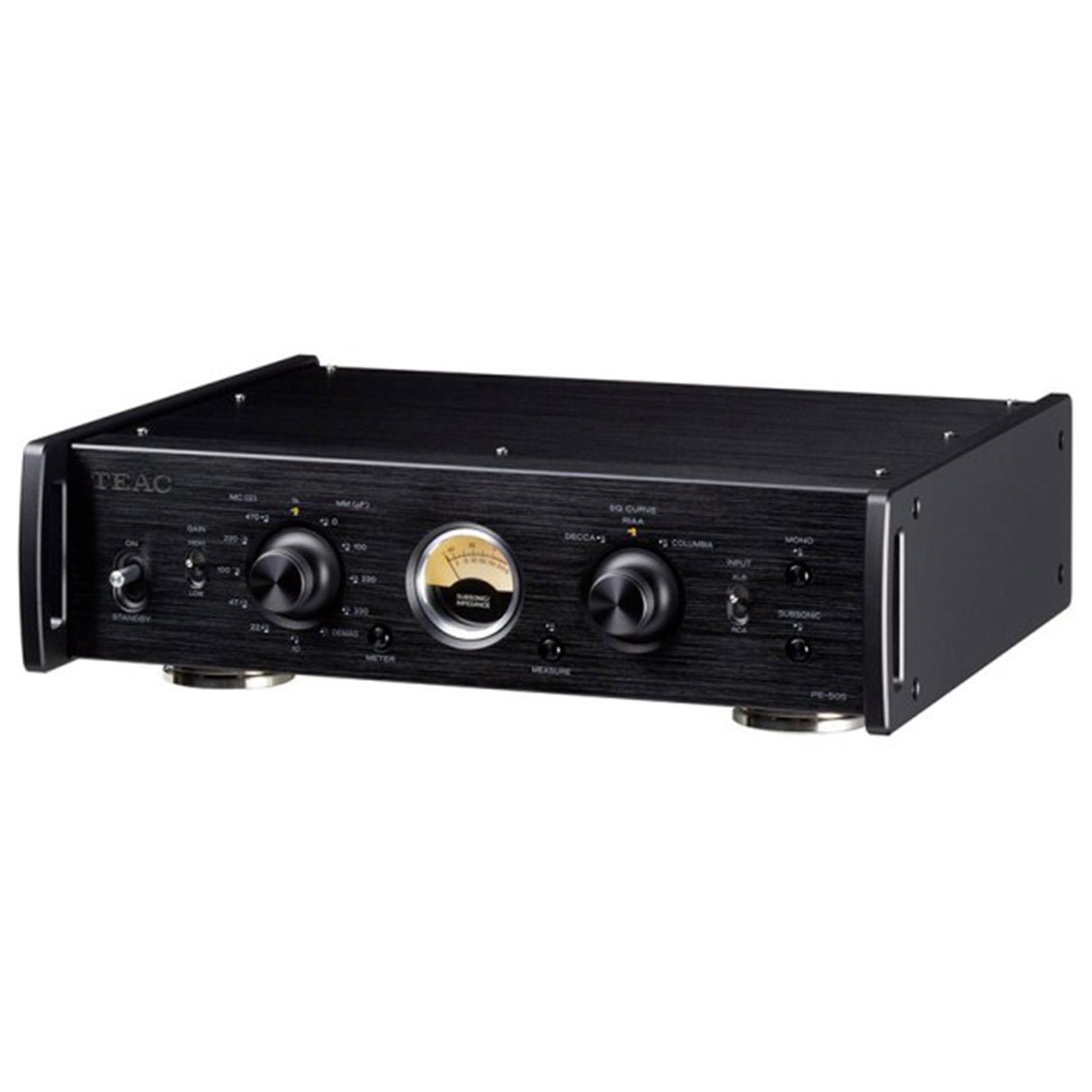

Teac PE-505 Phono Preamplifier (Black)

Brand: Teac | Model: 043774034307

✓ In Stock

Estimated Delivery by Thu, 06 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹225,500.00

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The TEAC PE-505 is a reference-grade phono preamplifier developed to extract every detail from vinyl recordings with exceptional accuracy and musicality. Designed around a dual-mono fully balanced architecture, it minimizes channel interference while preserving the delicate signal generated by phono cartridges.

Supporting both Moving Magnet (MM) and Moving Coil (MC) cartridges, the PE-505 includes a dedicated balanced XLR input for MC cartridges, enabling true balanced signal transmission from compatible turntables. Adjustable gain settings and selectable MM capacitance and MC impedance allow precise cartridge matching for optimum performance.

A newly developed NF-type equalization circuit delivers outstanding RIAA accuracy with less than ±0.05dB deviation across the audible frequency range. In addition to the standard RIAA curve, the PE-505 also supports DECCA and COLUMBIA equalization curves, making it ideal for playing vintage mono records produced before the RIAA standard was established.

Additional audiophile features include a cartridge demagnetization (DEMAG) function, mono playback mode, subsonic detection and filtering, and an MC impedance measurement function for simplified cartridge setup.

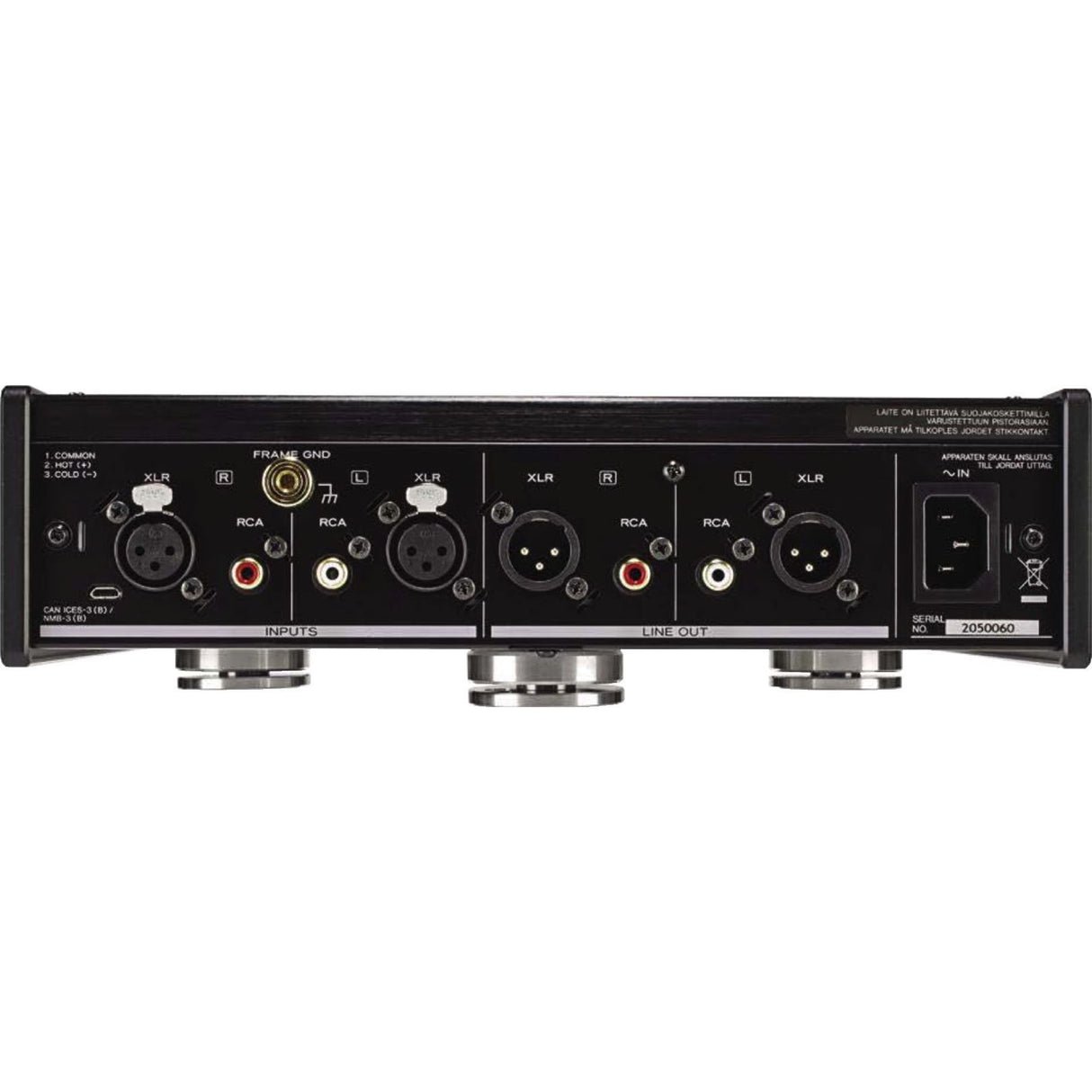

The analogue output stage provides both balanced XLR and unbalanced RCA outputs, allowing seamless integration with high-end integrated amplifiers, preamplifiers and power amplifiers. Built with TEAC's precision engineering and premium components, the PE-505 offers remarkably low noise, excellent channel separation and faithful analogue reproduction for demanding vinyl enthusiasts.

Specification	Details
Product Type	Fully Balanced Phono Preamplifier
Colour	Black
Circuit Design	Dual-Mono Fully Balanced
Supported Cartridges	MM & MC
Balanced Input	1 × XLR (MC Only)
Unbalanced Input	1 × RCA (MM/MC)
Balanced Output	1 × XLR
Unbalanced Output	1 × RCA
EQ Curves	RIAA / DECCA / COLUMBIA
RIAA Accuracy	±0.05dB (20Hz–20kHz)
MM Gain	34dB / 46dB
MC Gain	54dB / 66dB
MM Input Impedance	47kΩ
MM Capacitance	0 / 100 / 220 / 330pF
MC Input Impedance	10 / 22 / 47 / 100 / 220 / 470 / 1kΩ
Maximum Input Level (MM)	150mV
Maximum Input Level (MC)	16mV
Signal-to-Noise Ratio	106dB (MM), 86dB (Balanced MC)
Residual Noise	10μV (MM), 85μV (Balanced MC)
Channel Separation	≥90dB
Subsonic Filter	17Hz, –24dB/octave
Mono Function	Yes
DEMAG Function	Yes
MC Impedance Measurement	Yes
Ground Terminal	Yes
Power Consumption	14W
Power Supply	AC 230V, 50/60Hz
Dimensions (W × H × D)	290 × 84.5 × 252.5mm
Dimensions (W × H × D)	29 × 8.45 × 25.25cm
Weight	4.5kg
