Teac AX-505 - Stereo Integrated Amplifier

Name: Teac AX-505 - Stereo Integrated Amplifier
Brand: Teac
SKU: AX-505
Price: 165500.00 INR
Availability: InStock

Brand: Teac | Model: N/A

Be the first to review this product | SKU: AX-505

✓ In Stock

Estimated Delivery by Thu, 06 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹165,500.00

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The TEAC AX-505 Stereo Integrated Amplifier is a premium 2-channel integrated amplifier from TEAC's acclaimed Reference 505 Series, engineered to deliver exceptional Hi-Fi performance in a compact desktop-friendly chassis. Utilizing Hypex Ncore Class D amplification, a large toroidal power transformer, and a fully balanced input stage, the AX-505 combines high output power with remarkable clarity, low distortion, and musical precision. Its dual analog VU meters and all-metal construction further enhance both aesthetics and performance.

Delivering 70W per channel at 8Ω and 115W per channel at 4Ω, the TEAC AX-505 features balanced XLR and RCA inputs, an advanced CCLC headphone amplifier, independent resistor-ladder volume control, and premium MUSES op-amps. Designed for demanding bookshelf or floor-standing speakers, it is ideal for Hi-Fi stereo systems, desktop audiophile setups, digital music sources, and premium home audio applications.

Specifications

Specification	Details
Brand	TEAC
Model	AX-505
Product Type	Stereo Integrated Amplifier
Amplifier Class	Hypex Ncore Class D
Channels	2 Channel
Rated Power Output @ 8Ω	70W × 2
Rated Power Output @ 4Ω	115W × 2
Maximum Output Power	90W × 2 @ 8Ω, 130W × 2 @ 4Ω
Volume Control	Independent Resistor-Ladder Volume Control
Operational Amplifier	MUSES8920
Power Supply	Toroidal Power Transformer
Balanced Inputs	1 × XLR Stereo Input
Analog Inputs	3 × RCA Stereo Inputs
Headphone Output	3.5mm 4-Pole Ground-Separate Headphone Output
Headphone Output Power	360mW × 2 (32Ω)
Frequency Response	10Hz – 50kHz
Signal-to-Noise Ratio	110dB
Total Harmonic Distortion	0.002%
Supported Speaker Impedance	4Ω – 8Ω
Cooling System	Passive Fanless Cooling
Display	Dual Analog Level Meters with Adjustable Illumination

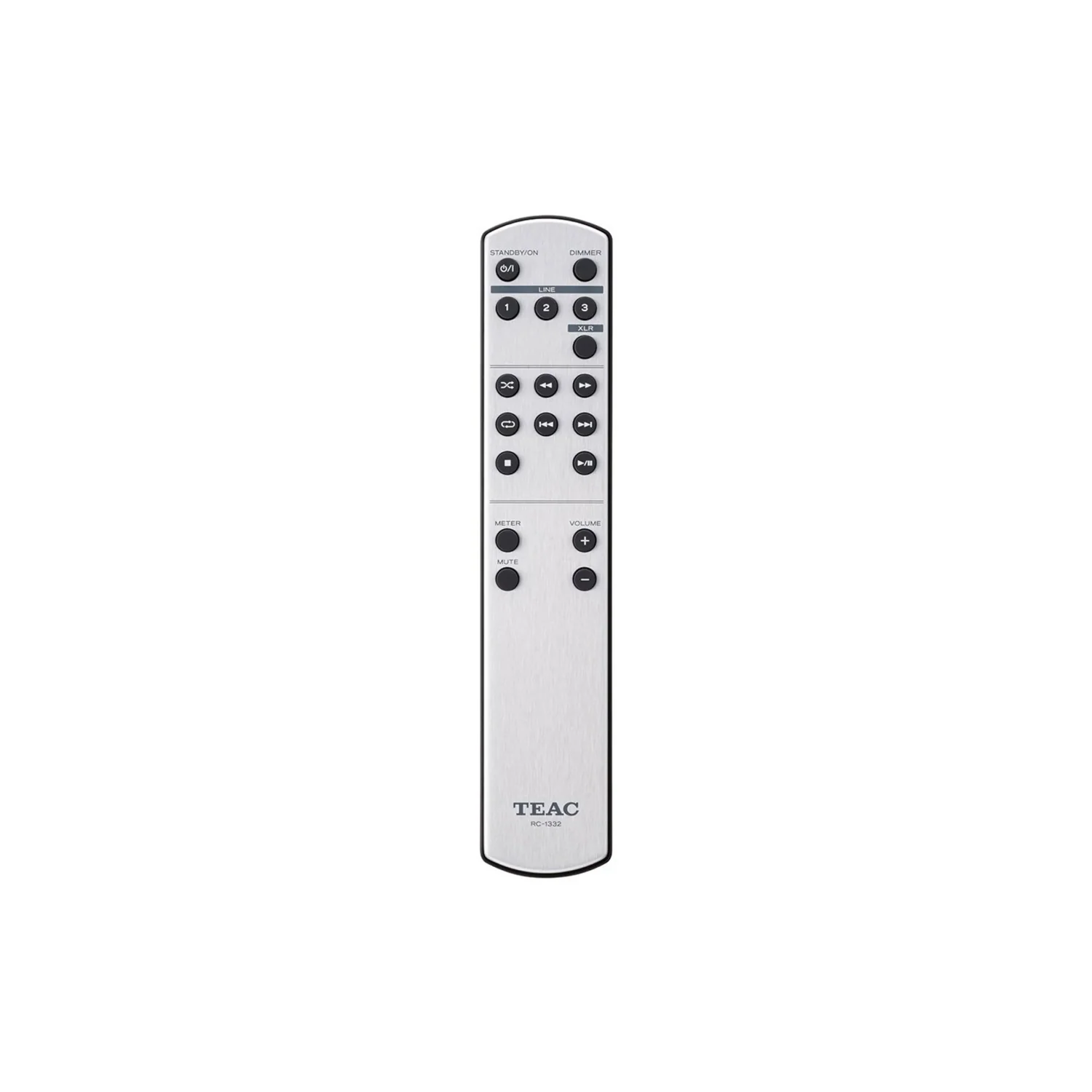

Remote Control	Included
Applications	Hi-Fi Stereo Systems, Desktop Audio, Audiophile Listening, Home Entertainment
