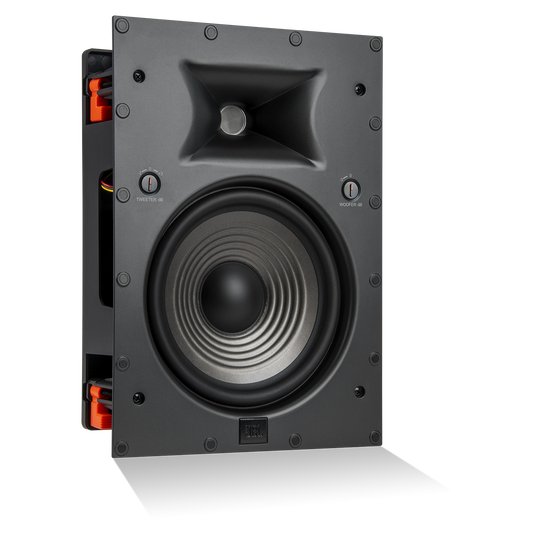

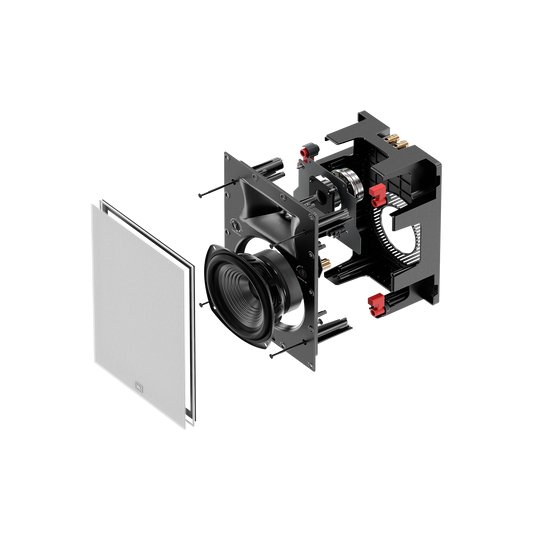

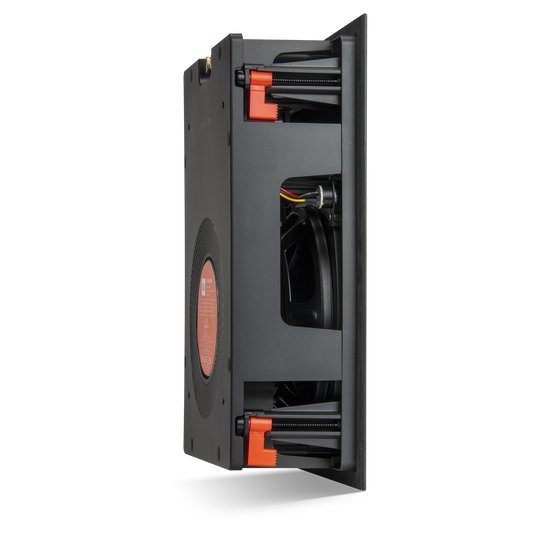

Studio 8IW

The JBL Studio 8IW delivers immersive, cinema-quality audio while maintaining a clean, built-in appearance. Its 8-inch Polyplas® cone woofer provides deep and controlled bass, while the 1-inch compression driver with High-Definition Imaging (HDI™) waveguide ensures accurate sound dispersion and detailed treble response.

• Brand: JBL
• Model: Studio 8IW (JBLS68IW)
• Type: 2-Way In-Wall Loudspeaker
• Woofer: 8" (203mm) Polyplas® Cone Woofer
• Tweeter: 1" (25mm) Compression Driver with HDI™ Waveguide
• Frequency Response: 43Hz – 20kHz
• Nominal Impedance: 6 Ohms
• Sensitivity: 93dB (2.83V/1m)
• Power Handling: 60W RMS / 250W Dynamic
• Recommended Amplifier Power: 50W – 80W
• Crossover Frequency: 2.5kHz
• Grille Dimensions (H × W): 25.1 × 34.9 cm
• Cutout Dimensions (H × W): 22.1 × 31.8 cm
• Mounting Depth: 9.5 cm
• Installation Type: In-Wall Mount
• Finish: White Magnetic Grille
