Parasound Zdac v.2 - Headphone Amplifier with DAC

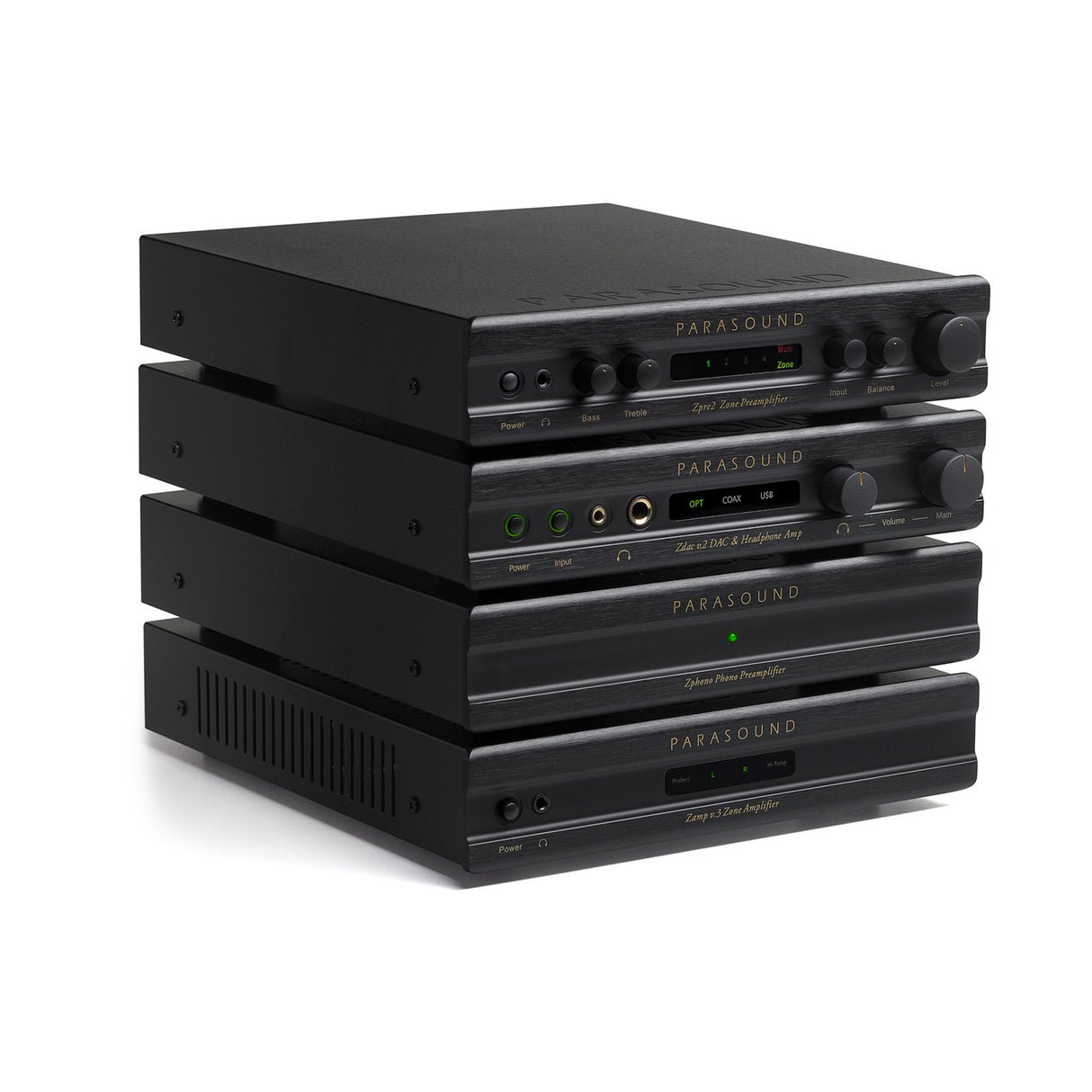

Parasound Zdac v.2 - Headphone Amplifier with DAC - view 1

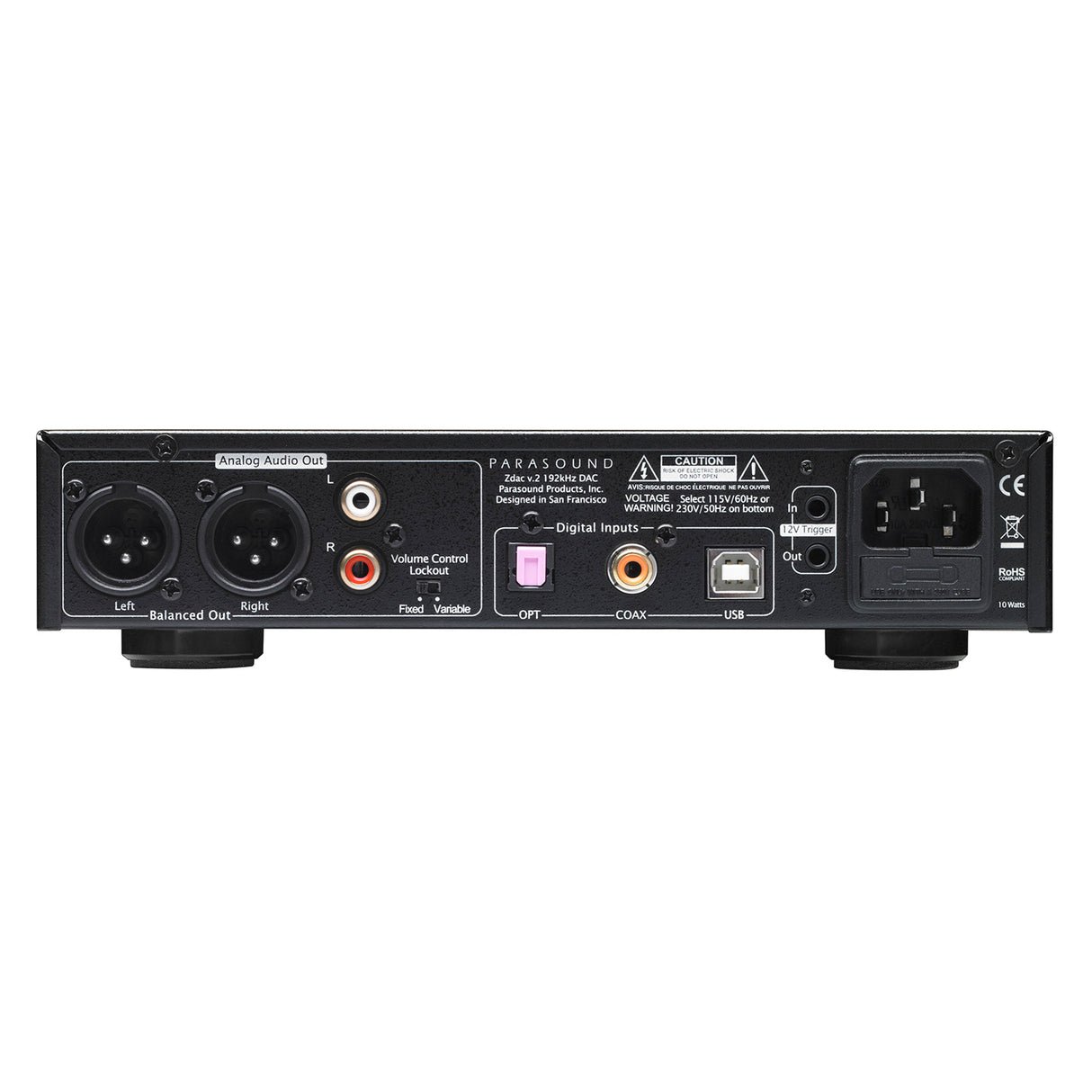

Parasound Zdac v.2 - Headphone Amplifier with DAC - view 2

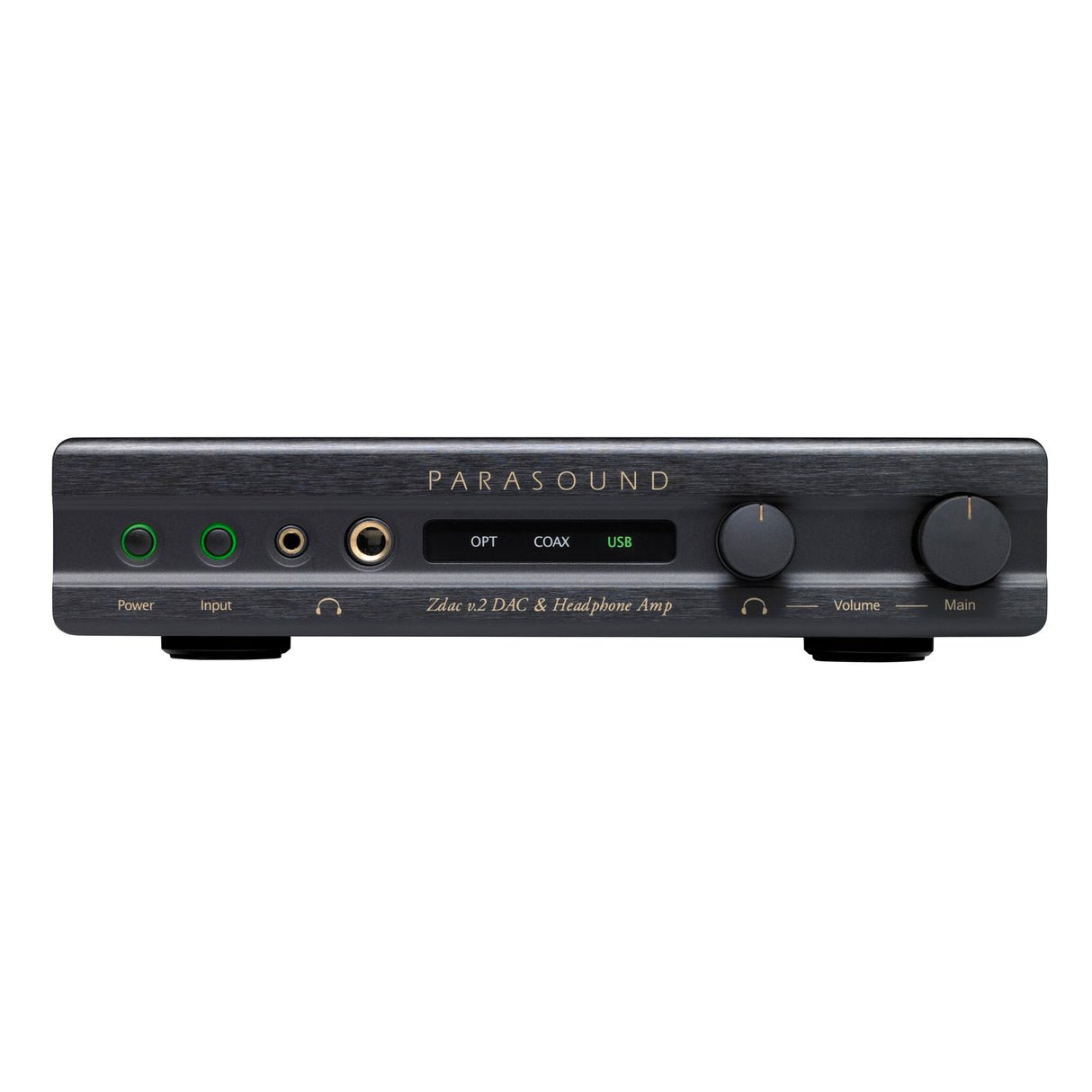

Parasound Zdac v.2 - Headphone Amplifier with DAC - view 3

Parasound Zdac v.2 digital-to-analogue converter and headphone amplifier featuring AD1853 DAC technology, USB, optical and coaxial inputs, balanced XLR and RCA outputs, and 6.35mm and 3.5mm headphone outputs.

Click to zoom

100% GenuineAuthentic products only

Easy Returns7-day return policy

Secure PaymentSSL encrypted checkout

Pan-India DeliveryFast & reliable shipping

Parasound Zdac v.2 - Headphone Amplifier with DAC

Name: Parasound Zdac v.2 - Headphone Amplifier with DAC
Brand: Parasound
Price: 69700.00 INR
Availability: InStock

Brand: Parasound | Model: N/A

Be the first to review this product | SKU: FW3011

✓ In Stock

Estimated Delivery by Tue, 04 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹69,700.00

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The Parasound Zdac v.2 combines high-quality digital conversion, analogue preamplification and headphone amplification in a compact desktop component. Its Analog Devices AD1853 24-bit/192kHz DAC works with an AD1895 asynchronous sample-rate converter, while all digital inputs are reclocked and upsampled to 24-bit/422kHz for digital signal processing.

The Zdac v.2 accepts optical and coaxial digital signals up to 24-bit/192kHz, while its USB input supports computer audio up to 24-bit/96kHz. A Texas Instruments TAS1020B USB streaming controller provides driver-free USB operation for compatible PC and Mac systems.

For headphone listening, the Zdac v.2 incorporates a Texas Instruments TPA6120 headphone amplifier with high-current output. Separate volume control is provided for the headphone outputs, and both 1/4-inch (6.35mm) and 1/8-inch (3.5mm) gold-plated headphone jacks are included. Parasound specifies compatibility with headphones from 32Ω to 600Ω.

The analogue output section provides both balanced XLR and unbalanced RCA outputs, with selectable fixed or variable output levels. This allows the Zdac v.2 to function as a DAC, headphone amplifier or analogue preamp in a wider Hi-Fi system. A built-in toroidal power transformer provides dedicated internal power rather than relying on an external wall adapter.

Feature	Specification
Brand	Parasound
Model	Zdac v.2
Product Type	DAC / Headphone Amplifier
DAC Chip	Analog Devices AD1853
DAC Resolution	24-bit
Maximum Optical/Coaxial Input	24-bit / 192kHz
Maximum USB Input	24-bit / 96kHz
Upsampling	24-bit / 422kHz
Sample Rate Converter	Analog Devices AD1895
USB Controller	Texas Instruments TAS1020B
Headphone Amplifier	Texas Instruments TPA6120
Headphone Compatibility	32Ω – 600Ω
Headphone Outputs	1 × 6.35mm, 1 × 3.5mm
Digital Inputs	USB, Optical, Coaxial
Analogue Outputs	Balanced XLR, Unbalanced RCA
Headphone Volume Control	Separate
Line Output Impedance	160Ω
Headphone Output Impedance	10Ω
Frequency Response	20Hz – 20kHz ±0.2dB
Channel Balance	<0.05dB
Channel Separation	>95dB
Signal-to-Noise Ratio	110dB, A-weighted
THD + Noise	<0.015%
Maximum Variable RCA Output	2.4Vrms
Maximum Variable XLR Output	4.8Vrms
Maximum Fixed RCA Output	2.2Vrms
Maximum Fixed XLR Output	4.4Vrms
Power Consumption	10W operating / <1W standby
Power Supply	Internal Toroidal Transformer
12V Trigger	Input & Output
Finish	Black / Silver
