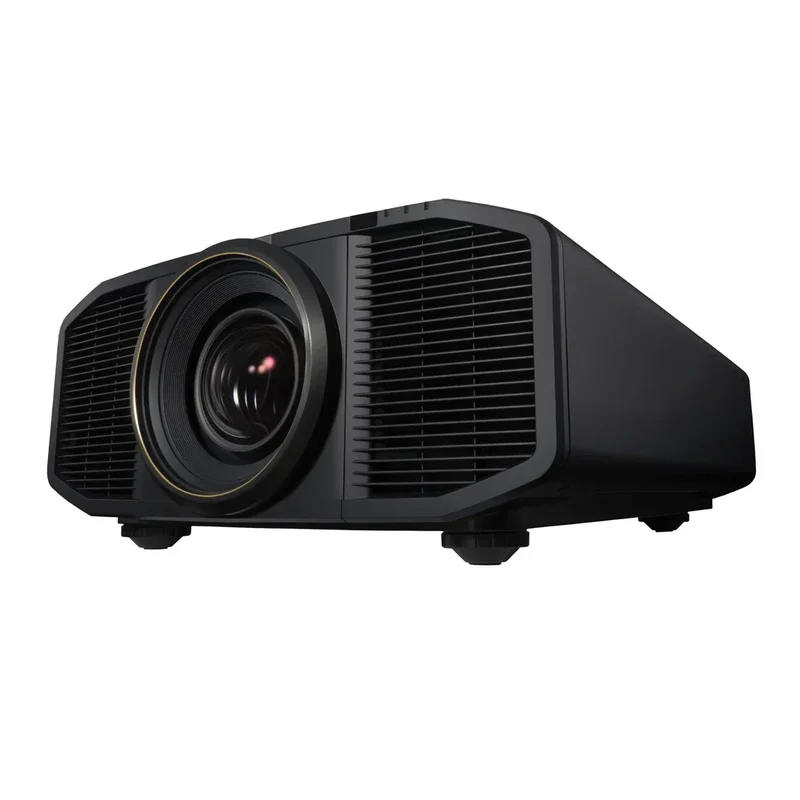

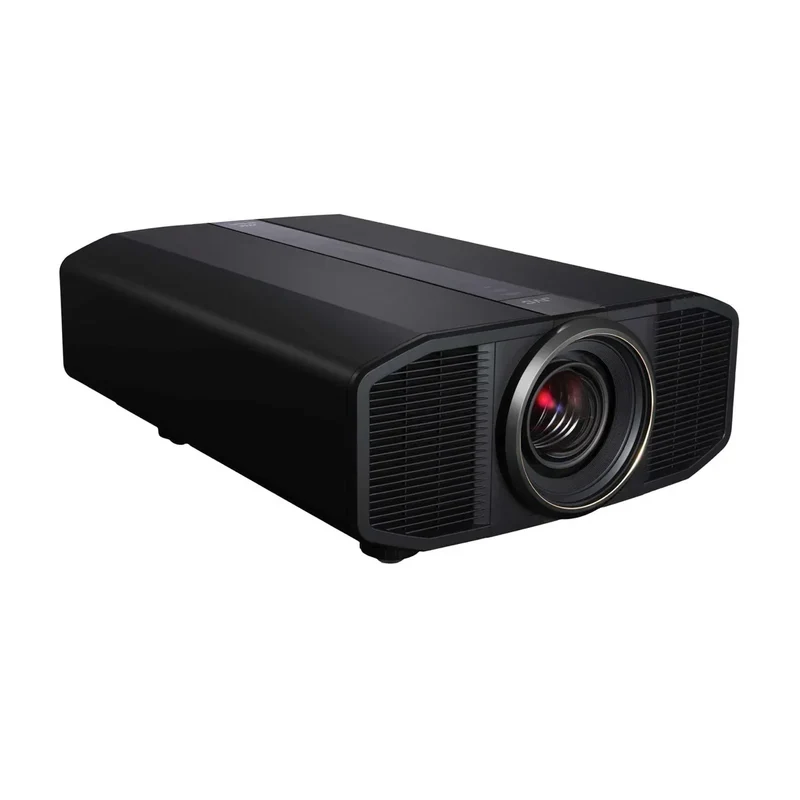

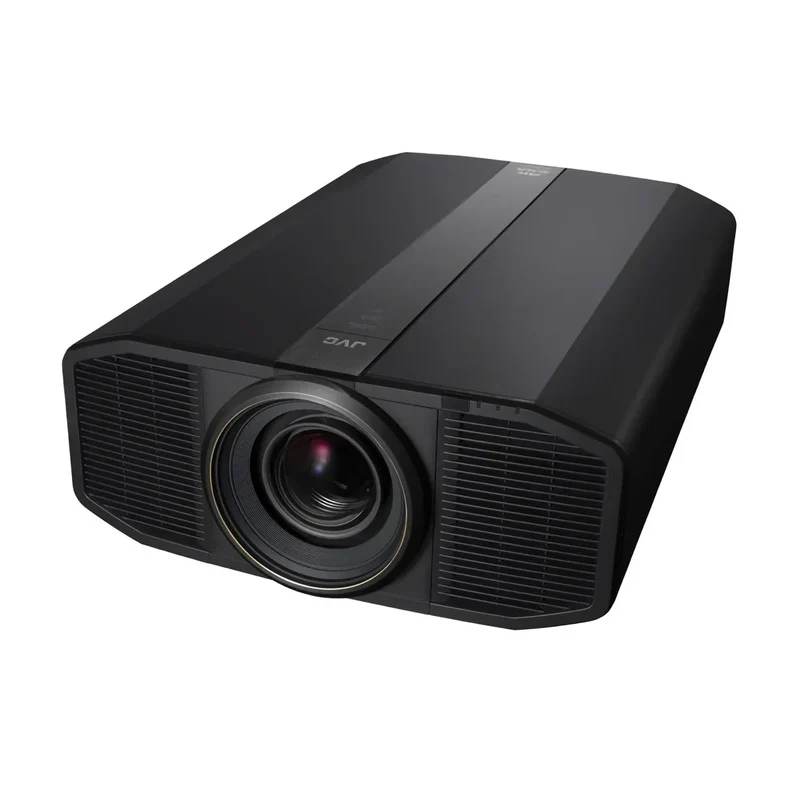

JVC DLA-Z1 - 4K D-ILA Laser Projector

Brand: JVC | Model: N/A

✗ Out of Stock

₹2,767,397.50

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The JVC DLA-Z1 is JVC's flagship native 4K D-ILA laser home theater projector, engineered to deliver uncompromising cinematic performance for dedicated home theaters and premium AV installations. Featuring native 4K resolution (4096 × 2160), the proprietary BLU-Escent™ laser light source, and 3,000 ANSI lumens of brightness, the DLA-Z1 produces breathtaking image quality with exceptional clarity, contrast, and color accuracy.

Powered by three 0.69-inch Native 4K D-ILA imaging devices, the projector displays true 4K content without pixel shifting, delivering razor-sharp details and smooth motion. The advanced 100 mm all-glass 18-element, 16-group lens with five ED (Extra-low Dispersion) elements minimizes chromatic aberration and ensures edge-to-edge image sharpness across large projection screens.

The BLU-Escent laser phosphor light source provides up to 20,000 hours of maintenance-free operation while achieving an infinite dynamic contrast ratio through intelligent laser light modulation. Support for HDR10, Hybrid Log-Gamma (HLG), DCI-P3, and 80% BT.2020 color coverage enables the projector to reproduce vibrant colors, deep blacks, and realistic highlights for an immersive cinematic experience.

Designed for professional installation, the DLA-Z1 offers motorized 2x zoom, motorized focus, ±100% vertical lens shift, ±43% horizontal lens shift, lens memory, and compatibility with 4K/60p HDMI 2.0a HDCP 2.2 sources. Certified by THX® and ISF, it is ideal for high-end home cinemas where reference-quality image reproduction is essential.

Key Features

Native 4K D-ILA Projection Technology (4096 × 2160)
BLU-Escent™ Laser Phosphor Light Source
3,000 ANSI Lumens Brightness
Infinite Dynamic Contrast Ratio
Three Native 0.69-inch 4K D-ILA Panels
100 mm All-Glass 18-Element Premium Lens
Five ED (Extra-low Dispersion) Lens Elements
HDR10 & Hybrid Log-Gamma (HLG) Support
100% DCI-P3 and Approximately 80% BT.2020 Color Coverage
Motorized 2x Zoom, Focus & Lens Shift
THX® 4K Display Certified
ISF Certified Calibration Controls
HDMI 2.0a with HDCP 2.2 (18 Gbps)
Motion Enhance & Clear Motion Drive
Up to 20,000 Hours Laser Light Source Life

Technical Specifications

Specification	Details
Product Type	Native 4K D-ILA Laser Home Theater Projector
Brand	JVC
Model	DLA-Z1
Projection Technology	3-Chip D-ILA
Display Device	3 × 0.69-inch Native 4K D-ILA Panels
Native Resolution	4096 × 2160
Maximum Resolution	4096 × 2160
Brightness	3,000 ANSI Lumens
Dynamic Contrast Ratio	Infinity:1
Light Source	BLU-Escent™ Laser Phosphor
Light Source Life	Up to 20,000 Hours
Lens	100 mm All-Glass Lens (18 Elements / 16 Groups)
ED Lens Elements	5
Zoom	2× Motorized
Focus	Motorized
Throw Ratio	1.4 – 2.8 : 1
Lens Shift	Vertical ±100%, Horizontal ±43%
Screen Size	60 – 280 Inches
HDR Support	HDR10, Hybrid Log-Gamma (HLG)
Color Space	Rec.709, 100% DCI-P3, Approx. 80% BT.2020
HDMI Inputs	2 × HDMI 2.0a (HDCP 2.2, 18 Gbps)
LAN	RJ45
RS-232C	Yes
USB	Type-A (Service/Firmware)
Trigger Output	12V Trigger
3D Support	Active 3D
THX Certification	Yes
ISF Calibration	Yes
Power Supply	AC 100–240V, 50/60Hz
Power Consumption	750 W
Noise Level	25 dB (Low Laser Mode)
Dimensions (W × H × D)	500 × 235 × 720 mm
Weight	37.5 kg
Color	Black
