Emotiva XPA-DR3 Differential Reference™ Three-Channel Power Amplifier

Brand: Emotiva | Model: N/A

✓ In Stock

Estimated Delivery by Mon, 10 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹412,050.00 ₹422,050.00 2% OFF

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The Emotiva XPA-DR3 Differential Reference™ is Emotiva's flagship 3-channel audiophile power amplifier, engineered for uncompromising performance in premium home theater and high-end stereo systems. Designed to power the Left, Center, and Right (LCR) speakers with exceptional authority, the XPA-DR3 features a fully balanced differential amplifier architecture, delivering outstanding dynamics, ultra-low noise, and remarkable sonic accuracy.

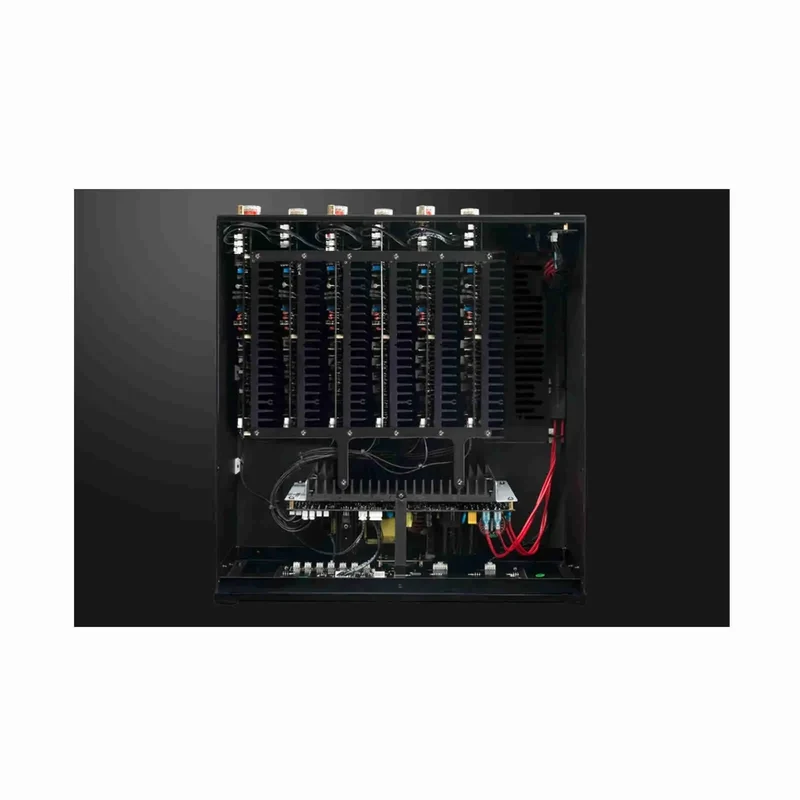

Each channel utilizes dual differential Class A/B amplifier modules, powered by a high-efficiency regulated Switch Mode Power Supply (SMPS) with Optimized Class H™ technology. This advanced design delivers an impressive 450 Watts RMS per channel into 8 ohms and 600 Watts RMS per channel into 4 ohms with all three channels driven, providing enormous headroom for demanding speakers and dynamic movie soundtracks.

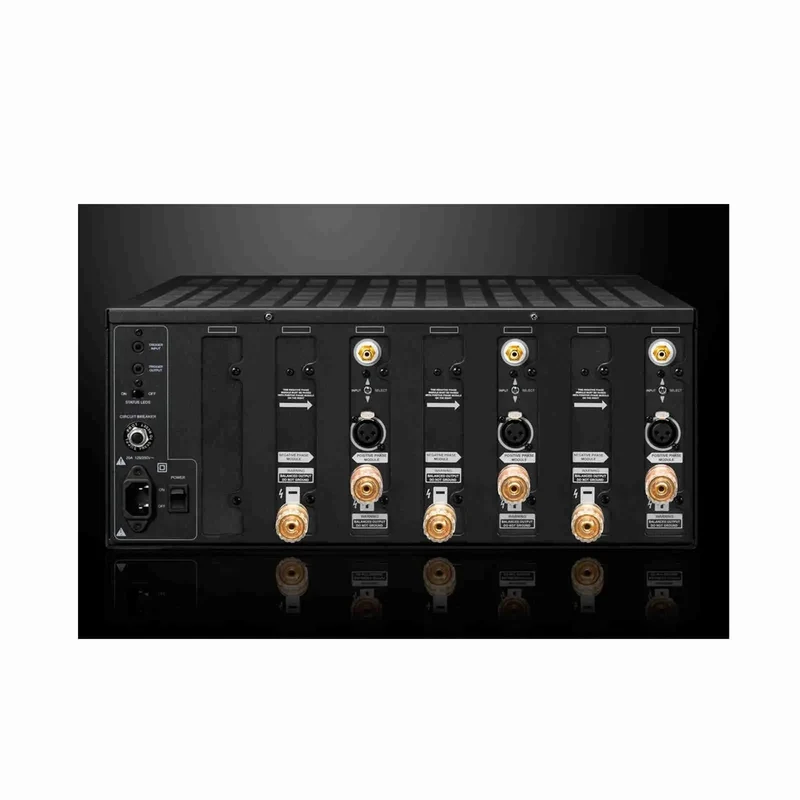

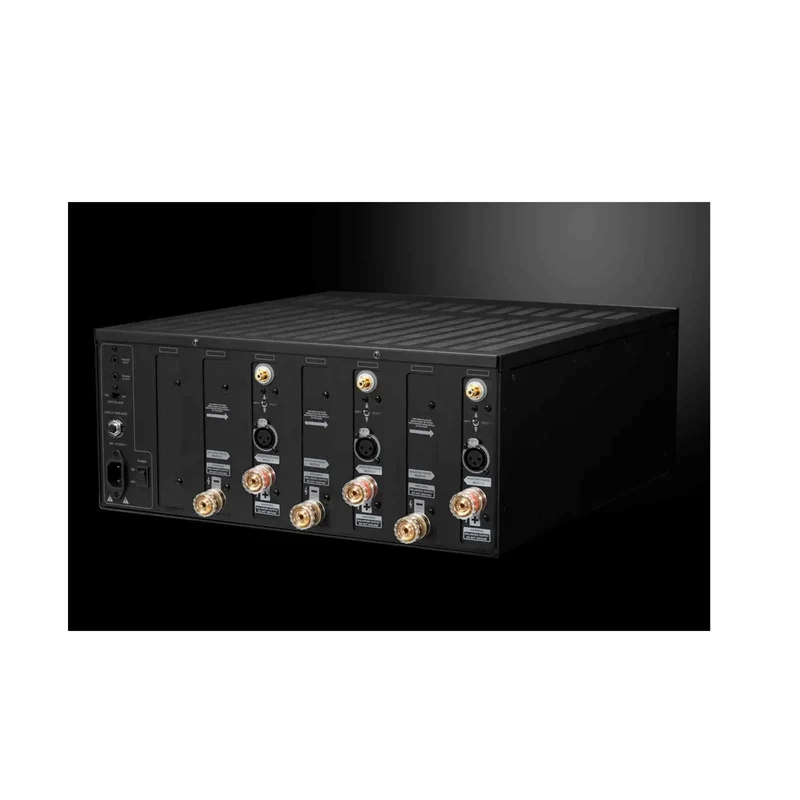

The XPA-DR3 offers both balanced XLR and unbalanced RCA inputs for maximum system compatibility. Its fully floating differential output stage, gold-plated 5-way binding posts, and microprocessor-controlled protection circuitry ensure superior performance, reliability, and protection against overheating, short circuits, and overload conditions. Designed, assembled, and tested in the USA, the XPA-DR3 is built to deliver reference-level sound quality for the most demanding audiophiles and home theater enthusiasts.

Key Features

Differential Reference™ 3-Channel Power Amplifier
Fully Balanced Differential Circuit Design
450W RMS × 3 @ 8Ω (All Channels Driven)
600W RMS × 3 @ 4Ω (All Channels Driven)
Fully Discrete Class A/B Amplifier Modules
Optimized Class H™ Power Supply Topology
High-Efficiency Regulated SMPS Power Supply
Balanced XLR & Unbalanced RCA Inputs
Gold-Plated 5-Way Speaker Binding Posts
Fully Floating Differential Output Stage
Microprocessor-Controlled Protection Circuitry
12V Trigger Input & Output
Heavy-Duty Steel Chassis with CNC-Machined Aluminum Front Panel
Designed, Assembled & Tested in the USA

Technical Specifications

Specification	Details
Product Type	3-Channel Power Amplifier
Brand	Emotiva
Model	XPA-DR3 Differential Reference™
Amplifier Class	Class A/B
Amplifier Topology	Fully Balanced Differential, Dual Differential Modules
Channels	3
Power Output (All Channels Driven, 8Ω)	450W RMS × 3
Power Output (All Channels Driven, 4Ω)	600W RMS × 3
Frequency Response	20Hz – 50kHz (+0 / –2dB)
Power Bandwidth	20Hz – 20kHz (+0 / –0.1dB)
Total Harmonic Distortion (THD + N)	<0.015% @ 100W, 1kHz, 8Ω
Signal-to-Noise Ratio	>120dB (A-weighted)
Damping Factor	>500
Input Sensitivity	2.0V
Gain	29dB
Input Impedance	33kΩ (Balanced), 23.5kΩ (Unbalanced)
Inputs	3 × Balanced XLR, 3 × RCA
Speaker Outputs	Gold-Plated 5-Way Binding Posts
Trigger Input	5–12V AC/DC
Trigger Output	12V DC (120mA Max)
Protection	Thermal, Short Circuit, Ground Fault & Overload
Power Supply	High-Efficiency Regulated SMPS with Optimized Class H™
Power Requirement	100–250V AC, 50/60Hz (Auto Switching)
Maximum Power Consumption	2,300W
Dimensions (W × H × D)	432 × 203 × 483 mm (17 × 8 × 19 in)
Weight	22.5 kg (49.5 lbs)
Finish	Black with CNC-Machined Aluminum Front Panel
