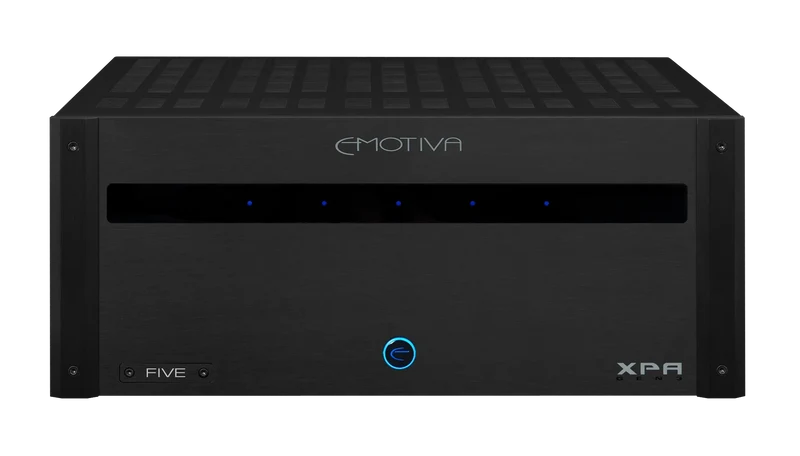

Emotiva XPA-5 Gen3 5 Channel Audiophile 300W Power Amplifier

Brand: Emotiva | Model: N/A

✗ Out of Stock

₹329,537.50

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The Emotiva XPA-5 Gen3 is a high-performance 5-channel audiophile power amplifier engineered for demanding home theater and high-fidelity audio systems. Built on Emotiva's modular XPA Gen3 platform, it combines high-current Class A/B amplifier modules with an audiophile-grade Switch Mode Power Supply (SMPS) and Optimized Class H™ power supply topology to deliver exceptional power, dynamics, and control across all five channels.

Designed for serious home cinema enthusiasts, the XPA-5 Gen3 delivers up to 300 Watts per channel into 8 ohms (2 channels driven) and 550 Watts per channel into 4 ohms (1 channel driven). Even with all five channels driven, it provides an impressive 250 Watts per channel into 8 ohms and 380 Watts per channel into 4 ohms, ensuring effortless performance during the most demanding movie soundtracks and music playback.

Each amplifier channel features a fully discrete dual-differential Class A/B design, offering ultra-low distortion, excellent channel separation, and exceptional detail. The XPA-5 Gen3 supports both balanced XLR and unbalanced RCA inputs, gold-plated 5-way binding posts, and a 12V trigger, making integration with AV processors and receivers simple and reliable. Its modular architecture also allows future expansion with additional amplifier modules, protecting your investment as your home theater grows.

Whether powering a premium 5.1, 7.1, or Dolby Atmos/DTS:X home theater, the Emotiva XPA-5 Gen3 delivers clean, dynamic, and highly detailed audio with outstanding headroom and speaker control.

Key Features

5-Channel Audiophile Power Amplifier
Fully Modular XPA Gen3 Architecture
High-Current Class A/B Amplifier Modules
Audiophile-Grade Switch Mode Power Supply (SMPS)
Optimized Class H™ Power Supply Topology
Up to 300W RMS per Channel @ 8Ω
Up to 550W RMS per Channel @ 4Ω
250W × 5 @ 8Ω (All Channels Driven)
380W × 5 @ 4Ω (All Channels Driven)
Fully Discrete Dual-Differential Amplifier Design

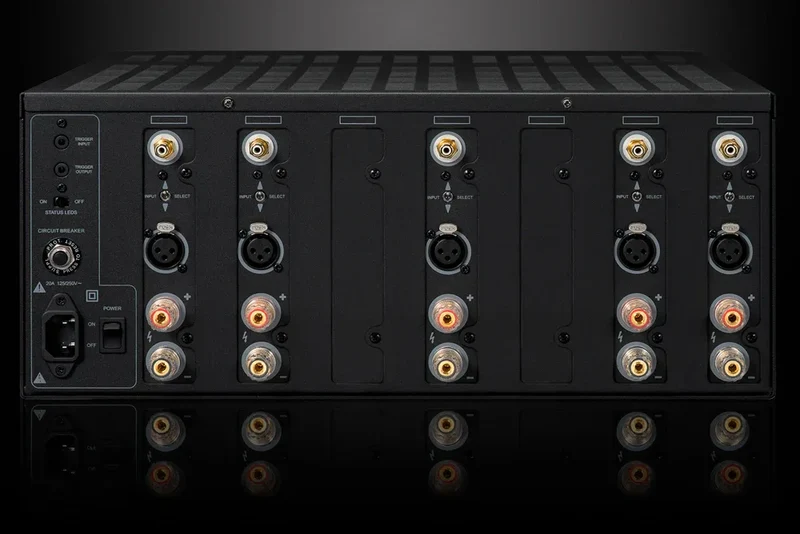

Balanced XLR & Unbalanced RCA Inputs
Gold-Plated 5-Way Speaker Binding Posts
12V Trigger Input & Output
Intelligent Microprocessor Protection System
Upgradeable Modular Design for Future Expansion

Technical Specifications

Specification	Details
Product Type	5-Channel Power Amplifier
Brand	Emotiva
Model	XPA-5 Gen3
Amplifier Class	Class A/B
Amplifier Topology	Fully Discrete Dual Differential
Power Supply	High-Efficiency SMPS with Optimized Class H™
Channels	5
Power Output (1 Ch, 8Ω)	300W RMS
Power Output (1 Ch, 4Ω)	550W RMS
Power Output (2 Ch, 8Ω)	300W RMS × 2
Power Output (2 Ch, 4Ω)	490W RMS × 2
Power Output (5 Ch Driven, 8Ω)	250W RMS × 5
Power Output (5 Ch Driven, 4Ω)	380W RMS × 5
Frequency Response	5Hz – 80kHz (+0 / –2dB)
Power Bandwidth	20Hz – 20kHz (+0 / –0.1dB)
Total Harmonic Distortion (THD)	<0.005% @ 100W, 1kHz
Signal-to-Noise Ratio	>117dB (A-weighted)
Damping Factor	>500
Gain	29dB
Input Sensitivity	1.71V
Input Impedance	33kΩ (Balanced), 23.5kΩ (Unbalanced)
Inputs	5 × Balanced XLR, 5 × RCA
Speaker Outputs	Gold-Plated 5-Way Binding Posts
Trigger Input	5–12V AC/DC
Trigger Output	12V DC
Protection	Thermal, Short Circuit, Ground Fault & Overload
Power Requirement	100–250V AC, 50/60Hz (Auto Switching)
Maximum Power Consumption	2,000W
Dimensions (W × H × D)	430 × 203 × 483 mm
Weight	20.9 kg
Finish	Black
