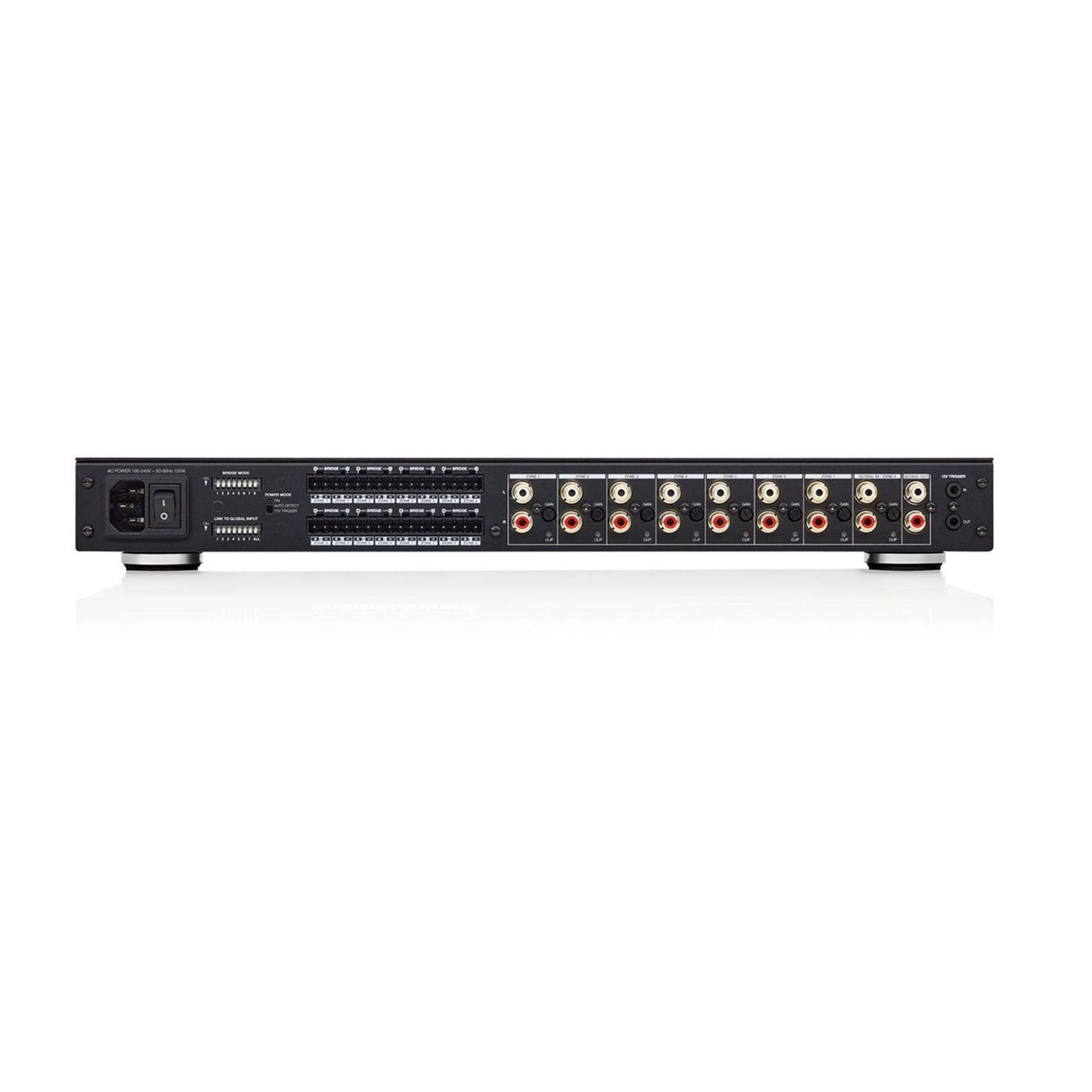

Bowers & Wilkins CDA-16 Distribution Power Amplifier with 16 Channels - view 1

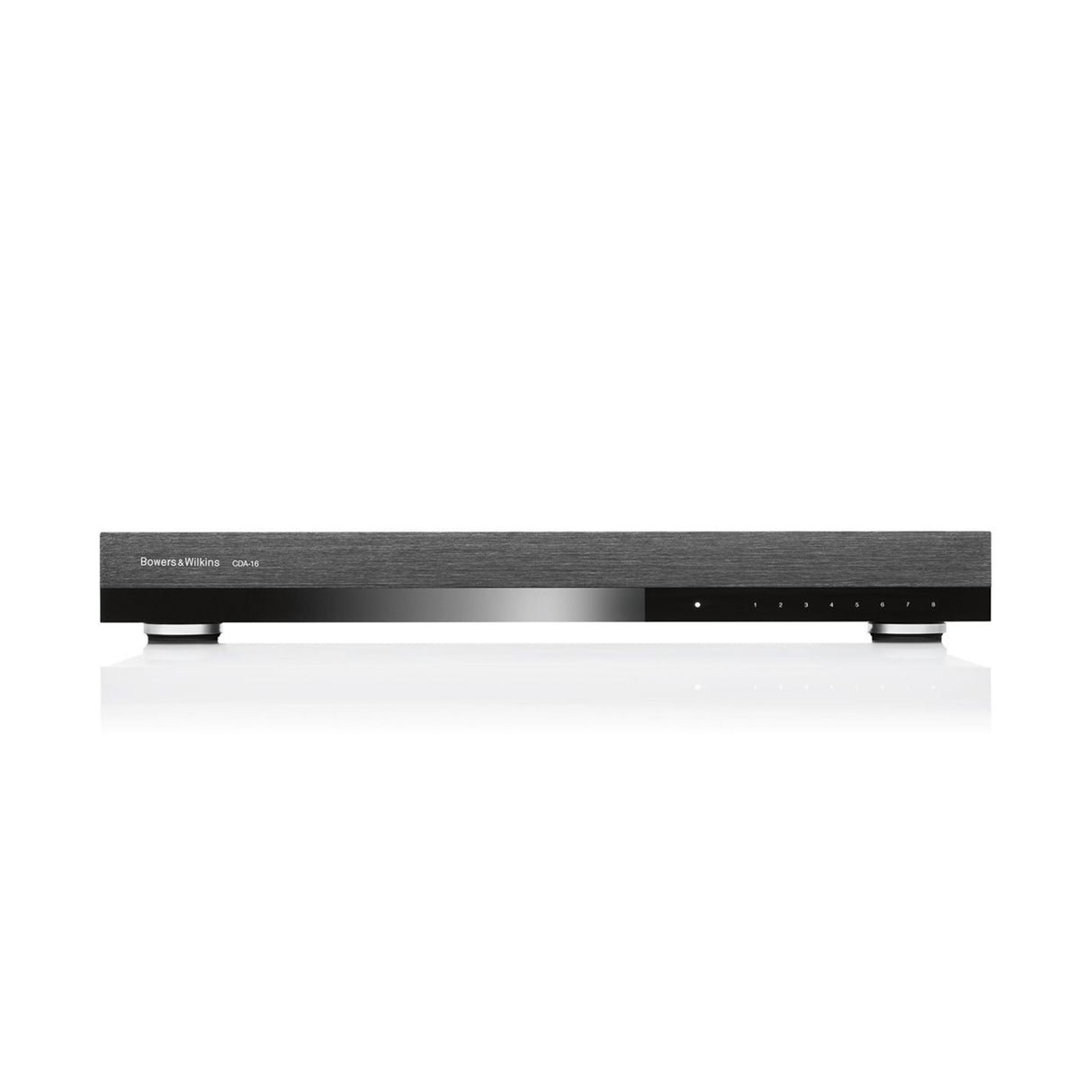

Bowers & Wilkins CDA-16 Distribution Power Amplifier with 16 Channels - view 2

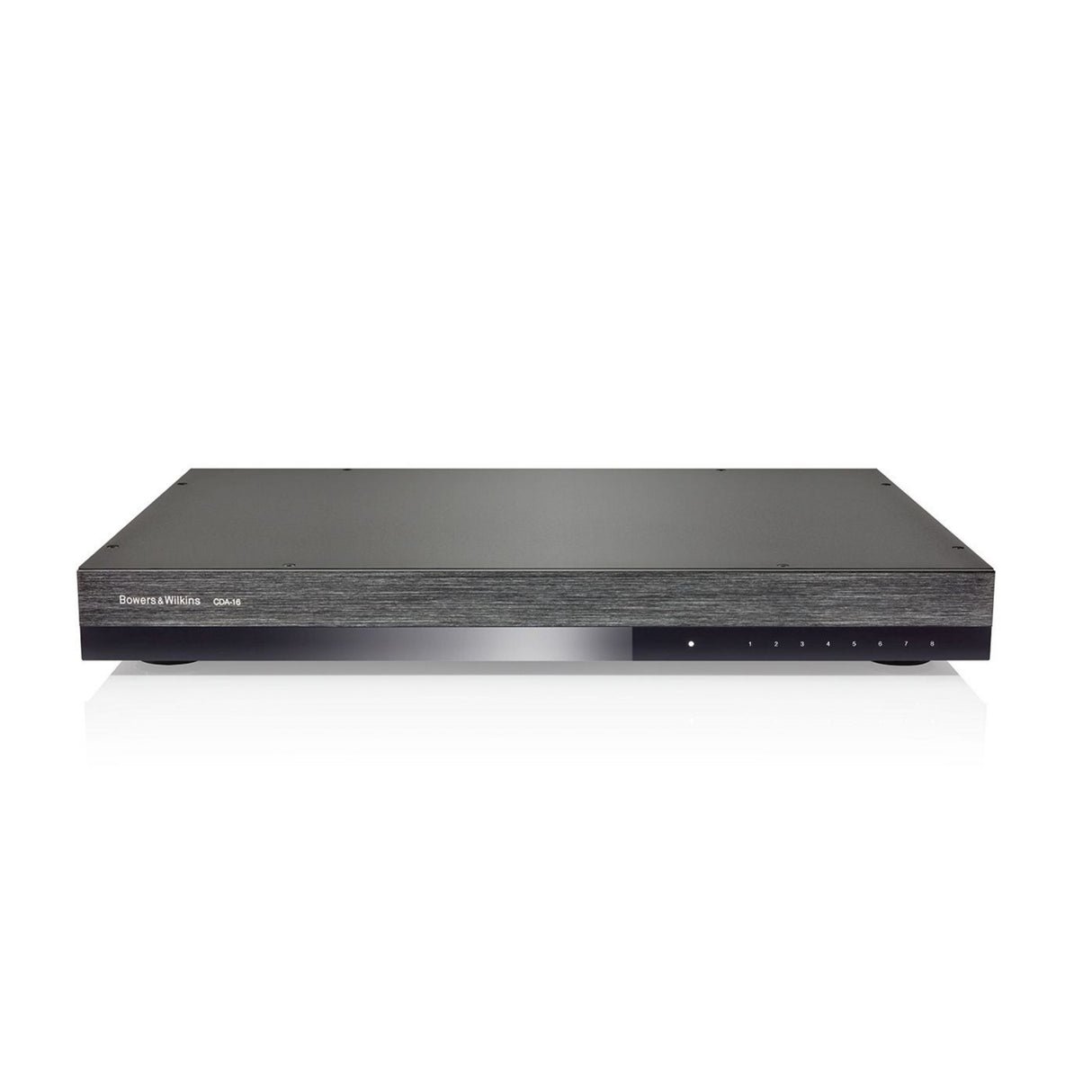

Bowers & Wilkins CDA-16 Distribution Power Amplifier with 16 Channels - view 3

Click to zoom

100% GenuineAuthentic products only

Easy Returns7-day return policy

Secure PaymentSSL encrypted checkout

Pan-India DeliveryFast & reliable shipping

Bowers & Wilkins CDA-16 Distribution Power Amplifier with 16 Channels

Name: Bowers & Wilkins CDA-16 Distribution Power Amplifier with 16 Channels
Brand: Bowers & Wilkins
Price: 379250.00 INR
Availability: InStock

Brand: Bowers & Wilkins | Model: N/A

Be the first to review this product | SKU: FW3080

✓ In Stock

Estimated Delivery by Tue, 04 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹379,250.00

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The Bowers & Wilkins CDA-16 is a high-performance 16-channel distribution power amplifier designed specifically for sophisticated custom-installation and multi-room audio systems. Its efficient Class D architecture provides reliable amplification across multiple zones while keeping the amplifier compact and suitable for rack-mounted installations.

The CDA-16 provides 70W of power per channel into 4Ω, giving installers the ability to independently power up to eight stereo zones or sixteen individual speaker channels. Channels can also be bridged in pairs when greater power is required for selected loudspeakers or zones.

Flexible input routing makes the amplifier suitable for complex distributed-audio configurations. Each channel includes independent gain adjustment, while front-panel signal and clipping indicators provide convenient monitoring during system setup and operation.

The amplifier includes a 12V trigger input for integration with compatible control systems and AV equipment. Its installation-focused design makes it suitable for residential multi-room audio, commercial distributed sound and dedicated custom-install projects.

With sixteen amplification channels, efficient Class D technology, flexible routing and rack-friendly construction, the Bowers & Wilkins CDA-16 is an excellent solution for powering multiple rooms and zones from a central audio system.

Specification	Details
Product Type	Distribution Power Amplifier
Amplifier Class	Class D
Number of Channels	16
Power Output – 4Ω	70W × 16
Power Output – 8Ω	50W × 16
Bridged Output	Supported
Bridged Power	Up to 140W per bridged pair
Frequency Response	20Hz–20kHz
THD + N	<0.05%
Signal-to-Noise Ratio	>100dB
Input Sensitivity	1.0V
Input Impedance	20kΩ
Input Type	Analogue
Input Routing	Flexible / Assignable
Channel Gain Control	Independent
Signal Indicators	Yes
Clip Indicators	Yes
12V Trigger	Yes
Speaker Connections	Phoenix-style / Euroblock
Cooling	Forced-air cooling
Installation	Rack Mountable
Rack Height	2U
Dimensions (W × H × D)	Approx. 430 × 88 × 420mm
Dimensions (W × H × D)	Approx. 43 × 8.8 × 42cm
Power Supply	AC Mains
Application	Multi-Room / Custom Installation / Distributed Audio
Colour	Black
