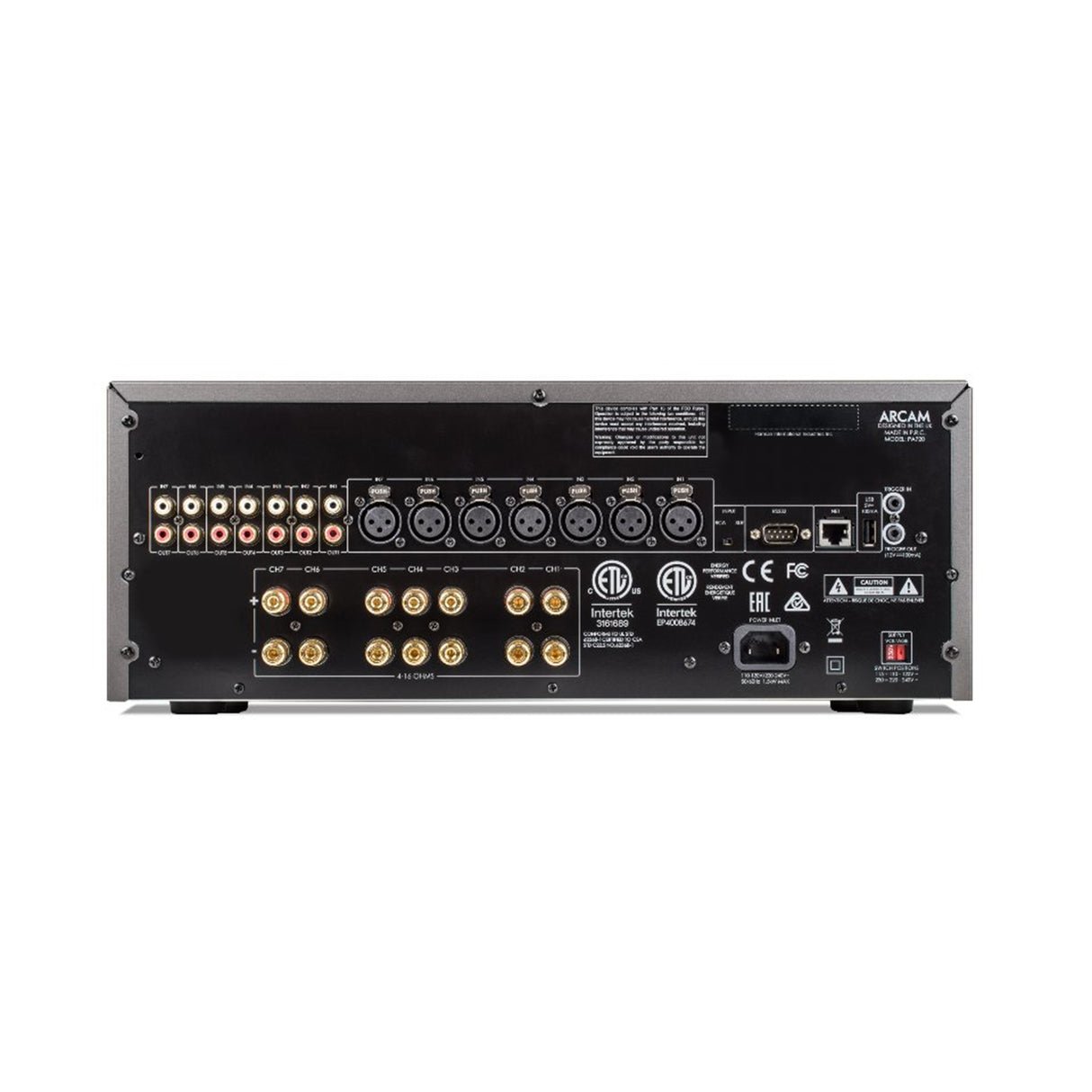

Arcam PA720 - Class G High Performance 7 Channel Power Amplifier - view 1

Click to zoom

100% GenuineAuthentic products only

Easy Returns7-day return policy

Secure PaymentSSL encrypted checkout

Pan-India DeliveryFast & reliable shipping

Arcam PA720 - Class G High Performance 7 Channel Power Amplifier

Name: Arcam PA720 - Class G High Performance 7 Channel Power Amplifier
Brand: Arcam
SKU: 000av0442
Price: 428439.75 INR
Availability: InStock

Brand: Arcam | Model: 506673744099

Be the first to review this product | SKU: 000av0442

✓ In Stock

Estimated Delivery by Tue, 04 Aug 2026 (Standard Shipping · Enter PIN for exact date)

₹428,439.75

(Incl. of all taxes)

WhatsApp Enquiry

Check Delivery Options & Time

🚛 Standard (By Road) ✈️ Express (By Air)

100% Original

Genuine Products

GST Invoice

Available

Fast Delivery

Safe & Secure

Description
Specifications
Reviews (0)

The Arcam PA720 is a high-performance seven-channel Class G power amplifier designed to provide powerful, controlled and detailed amplification for premium home theatre and multi-channel audio systems. Its Class G architecture incorporates 20W of Class A operation, combining refined low-level performance with efficient high-power output when demanding movie soundtracks or music passages require additional headroom.

With all seven channels driven, the PA720 delivers 100W per channel into 8Ω and 140W per channel into 4Ω across the full 20Hz–20kHz bandwidth. With fewer channels operating, it can provide even greater output, reaching 225W per channel into 4Ω with two channels driven.

The amplifier uses a toroidal-based power supply, acoustically damped chassis and paralleled transistor output stages to support excellent control and low distortion. Harmonic distortion is rated at just 0.002% at 80% power into 8Ω at 1kHz, helping preserve detail and clarity across demanding audio material.

For flexible system integration, the PA720 features switchable RCA and balanced XLR inputs, along with Ethernet and RS232 control. Its seven channels make it particularly suitable for powering multiple speakers in a dedicated home cinema system, including front, centre, surround or other channels from a compatible AV processor.

With its Class G architecture, Class A operation, robust power supply and high-quality analogue design, the Arcam PA720 is an excellent choice for enthusiasts building a powerful, refined and highly controlled multi-channel audio system.

Specification	Details
Product Type	7-Channel Power Amplifier
Amplifier Class	Class G
Number of Channels	7
Class A Operation	First 20W
Output – 7 Channels Driven	100W × 7 @ 8Ω
Output – 7 Channels Driven	140W × 7 @ 4Ω
Output – 5 Channels Driven	110W × 5 @ 8Ω
Output – 5 Channels Driven	175W × 5 @ 4Ω
Output – 2 Channels Driven	140W × 2 @ 8Ω
Output – 2 Channels Driven	225W × 2 @ 4Ω
THD	0.002% @ 80% power, 8Ω, 1kHz
Frequency Response	20Hz–20kHz ±0.05dB
Signal-to-Noise Ratio	105dB, A-weighted
Input Impedance	10kΩ
RCA Input Sensitivity	800mV RMS
XLR Input Sensitivity	1.6V RMS
Inputs	Switchable RCA / Balanced XLR
Power Supply	Toroidal transformer
Network Control	Ethernet
Control	RS232
Maximum Power Consumption	1.5kW
Typical Idle Consumption	90W
Standby Consumption	<0.5W
Mains Voltage	110–120V or 220–240V, 50–60Hz
Dimensions (W × D × H)	433 × 425 × 177 mm
Dimensions (W × D × H)	43.3 × 42.5 × 17.7 cm
Net Weight	18 kg
Packed Weight	19.7 kg
